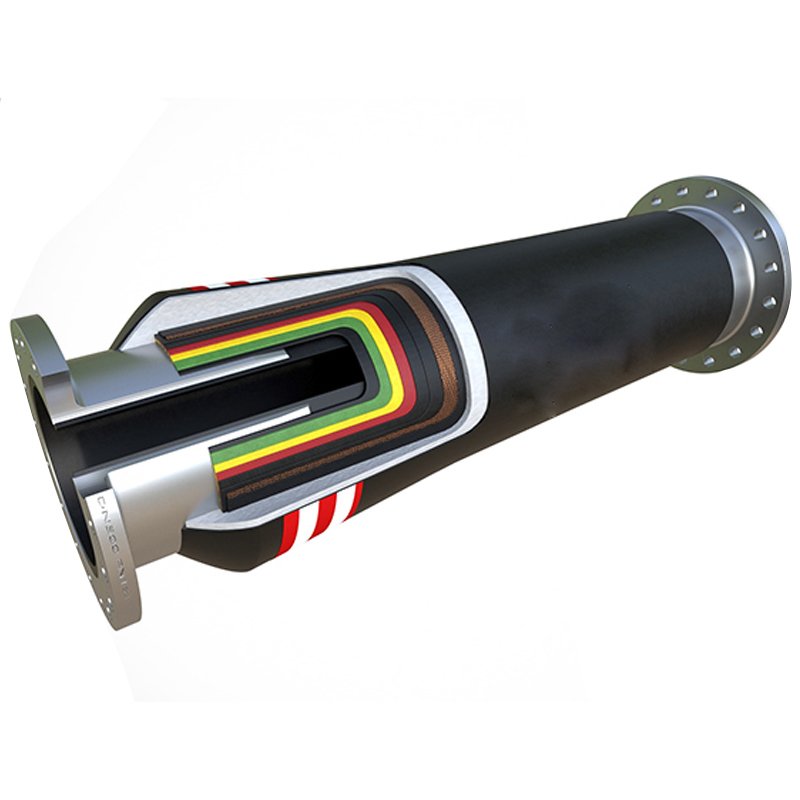

1.Inner Tube: NR(Natural Rubber)& SBR (Styrene Butadiene Rubber).
2.Reinforcement: Polyester fabric cord reinforcement.
3.Buoyancy Layer: Closed-cell PE foam (density ≥ 10 kg/m³).
4.Outer Tube: EPDM (Ethylene Propylene Diene Monomer) & NR (Natural Rubber) & SBR (Styrene Butadiene Rubber).
5.Tapered Design: Gradual diameter reduction.
6.End Fitting: Stainless steel/Q235 material flanges in PN,JIS,ANSI,DIN,EN Standard .

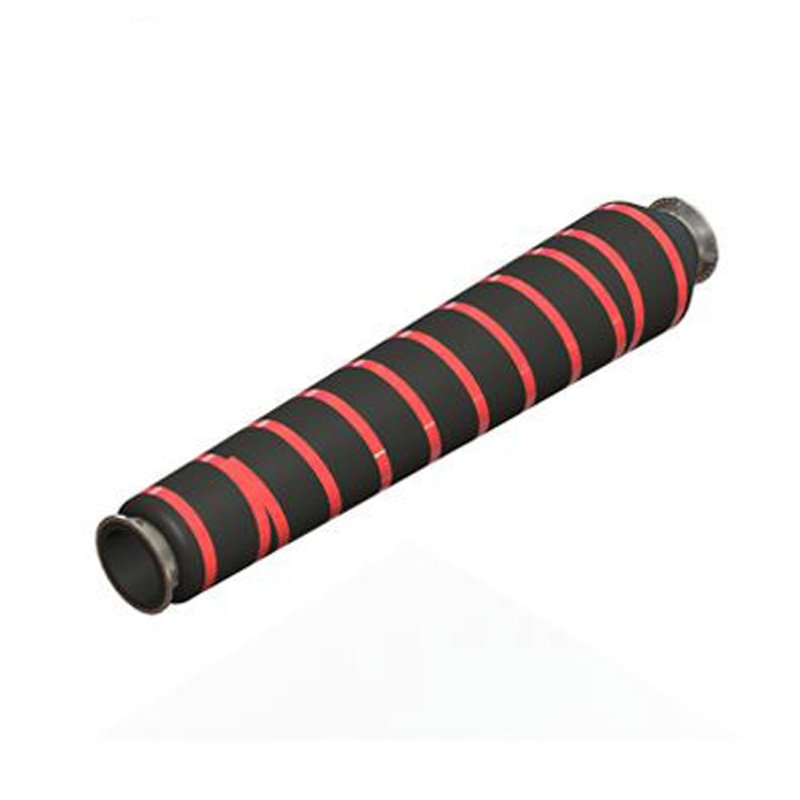

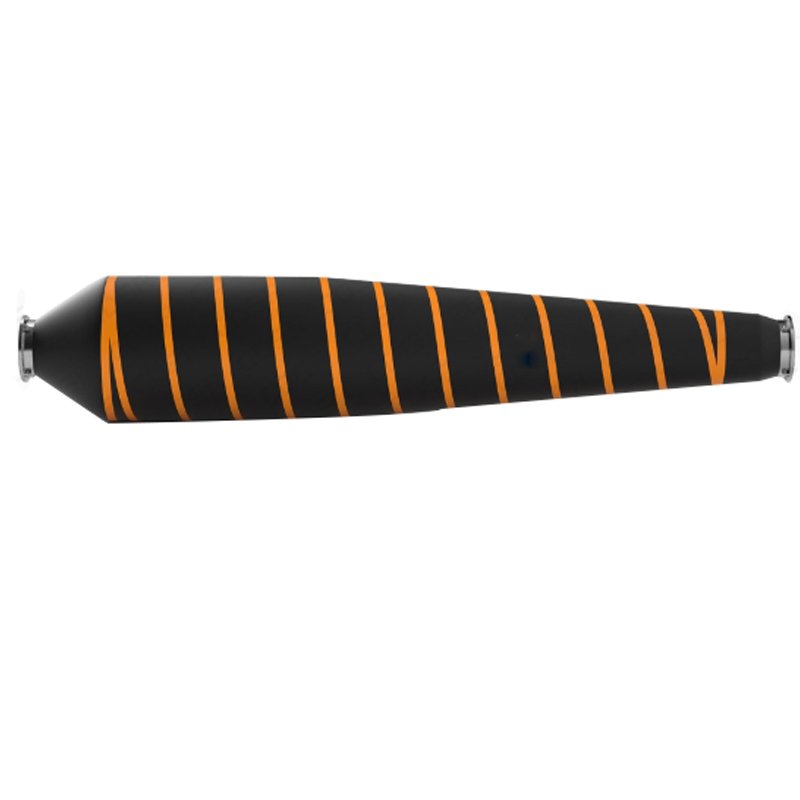

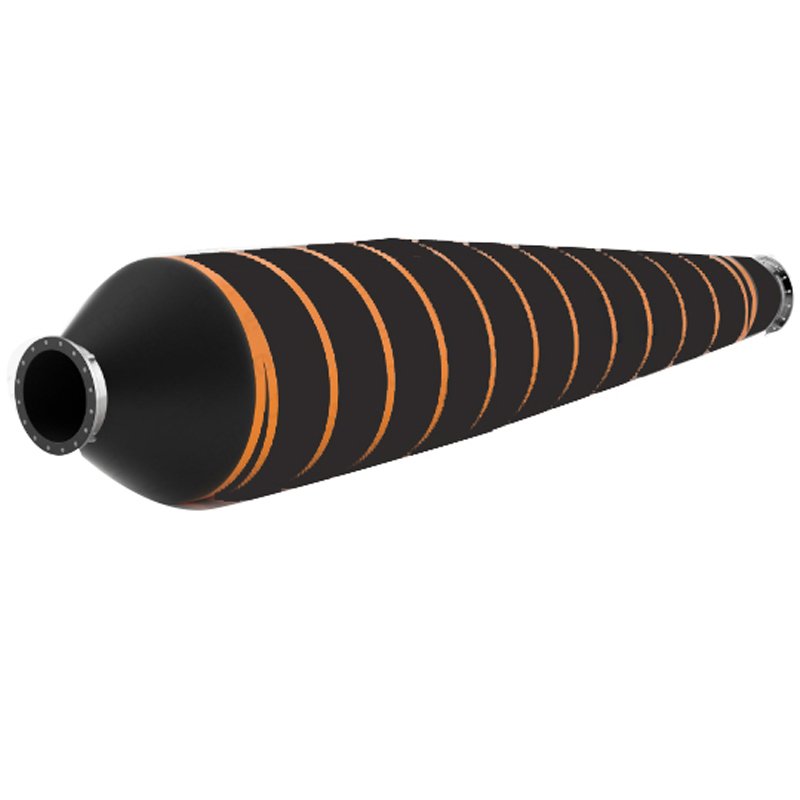

ABLEFLEX Floating Hoses are bespoke systems consisting of several elements with different buoyancy configurations (if required), e.g. to build U-shape before head-floats (for TSHD-connection). It is maily used for connecting with bow of hopper dredger, transport slurry into floating hose.
1.Slurry Transfer:
·Transporting dredged materials (e.g., sand, silt, or sediment) from dredgers to disposal sites or barges.
2.Floating Pipeline:
·Used as part of a floating pipeline system for large-scale dredging projects.
| Parameter | Specification |
| Inner Tube | Natural Rubber & SBR |
| Reinforcement | Polyester fabric cord |
| Buoyancy Layer | Closed-cell PE foam (≥ 10 kg/m³) |
| Outer Tube | EPDM, NR, & SBR |
| Tapered Design | Gradual diameter reduction |
| End Fitting | Q235 flanges in PN,JIS,ANSI,DIN,EN standard |
| Working Temperature | -20°C to +80°C |
| Working Pressure | 10–30 BAR |
| Color | Black with orange/yellow stripe |
| Abrasion Layer Thickness | 5 mm to 50 mm |
| Hose ID Range | 150 mm to 1200 mm |
| Maximum Length | 11.8 meters |
Note: Specifications, pressures, colors, and other parameters can be customized to meet the customer’s specific requirements.
