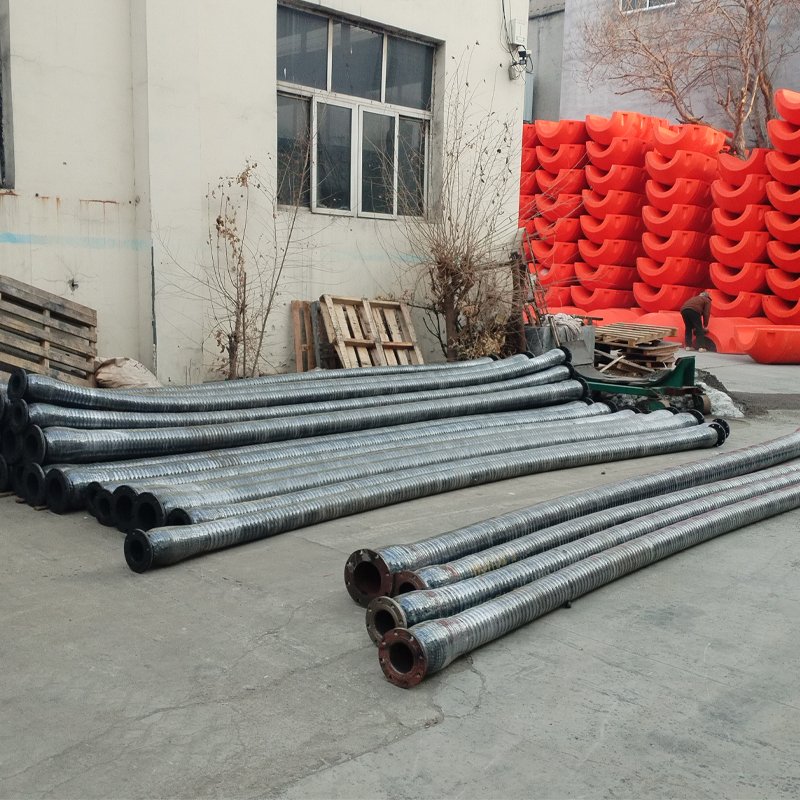

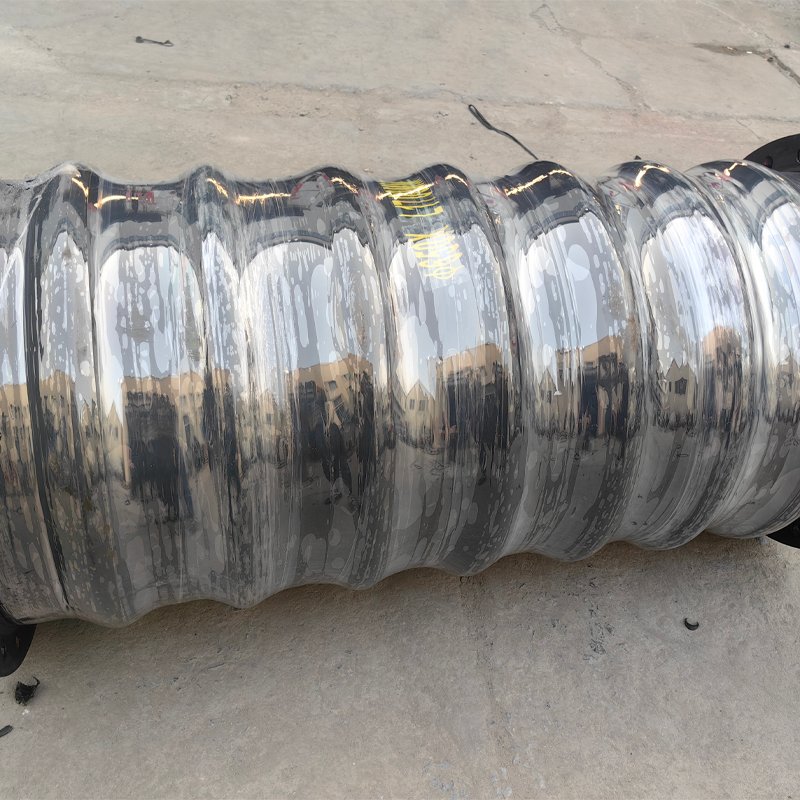

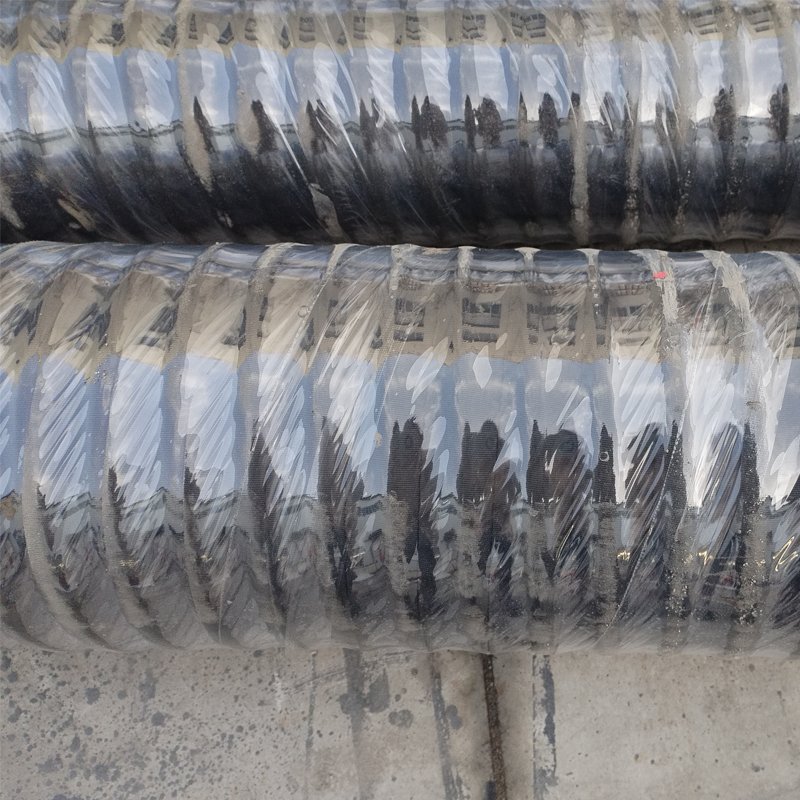

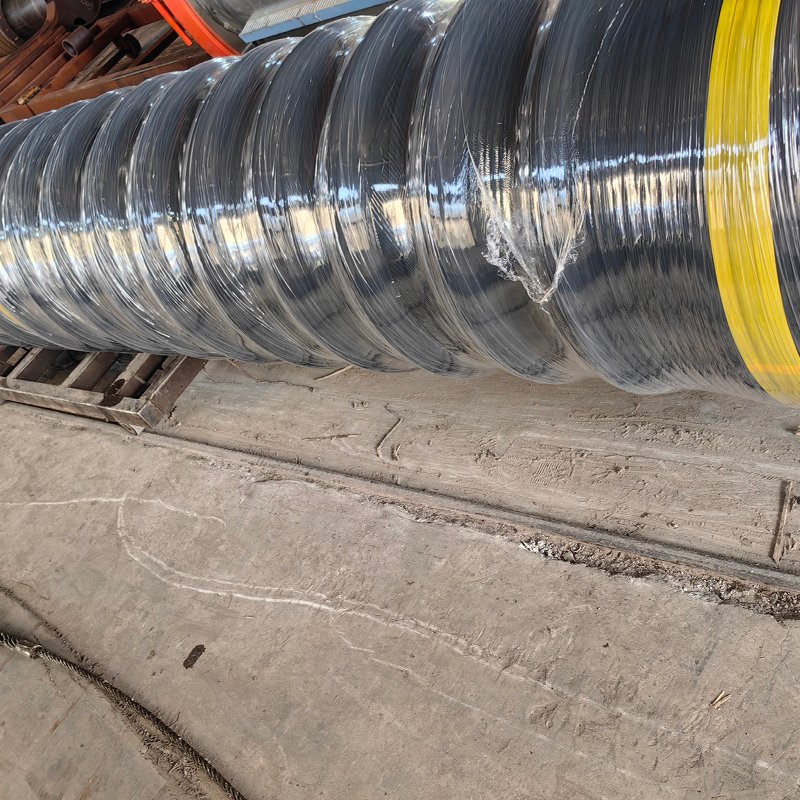

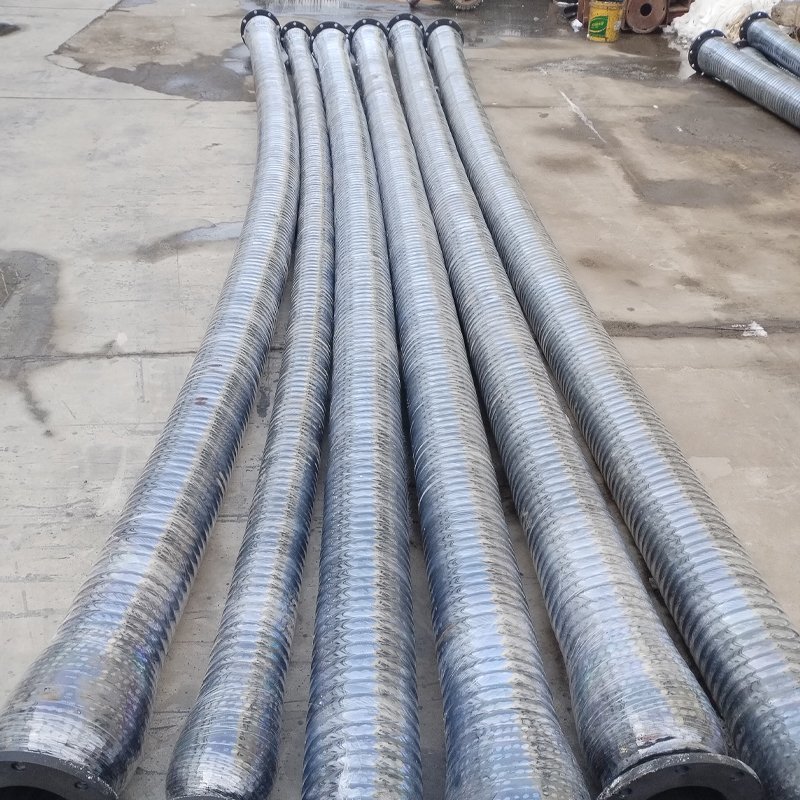

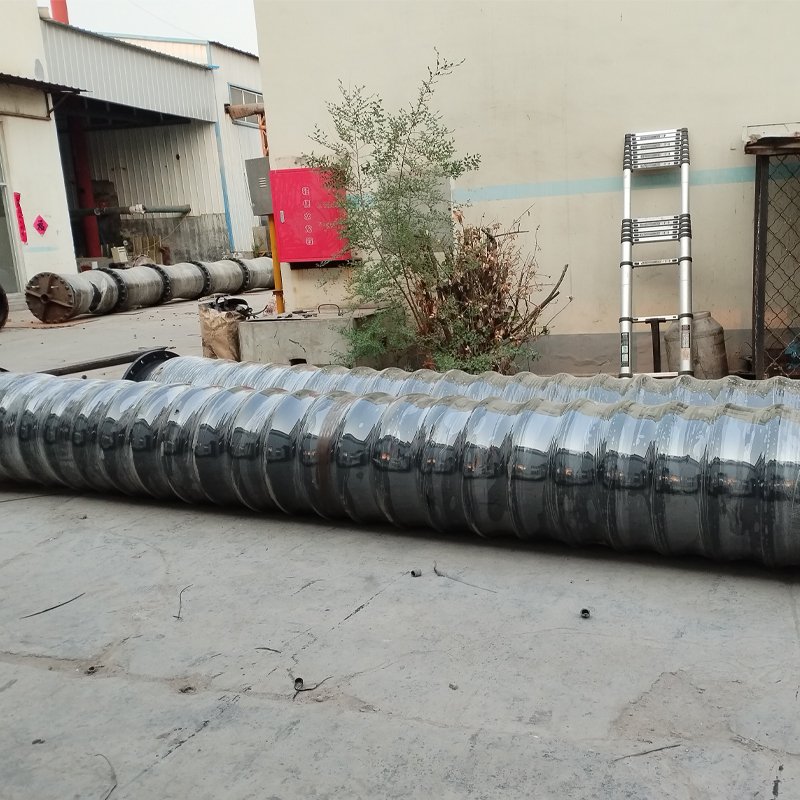

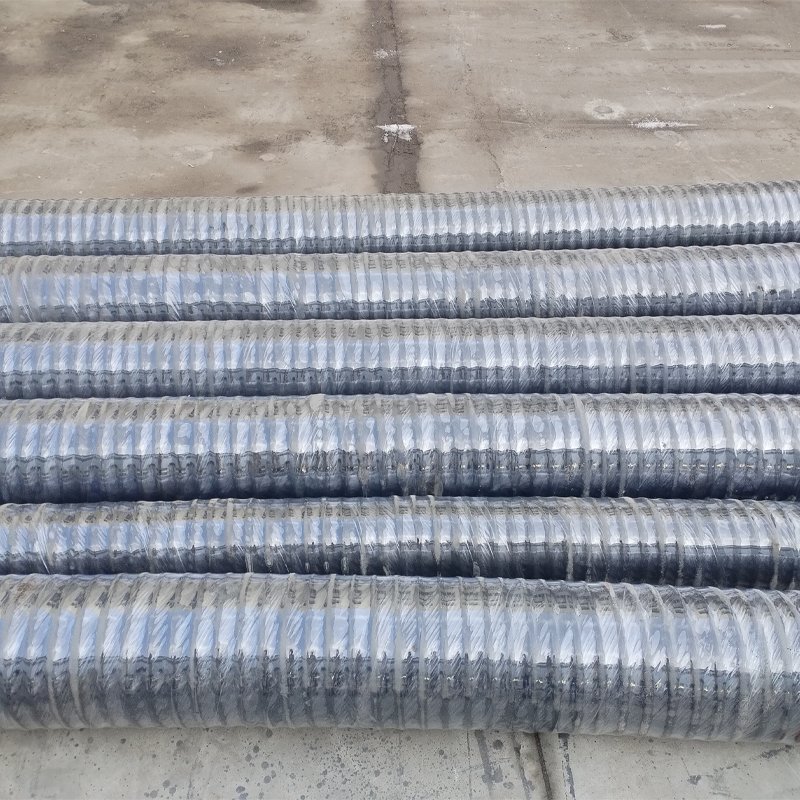

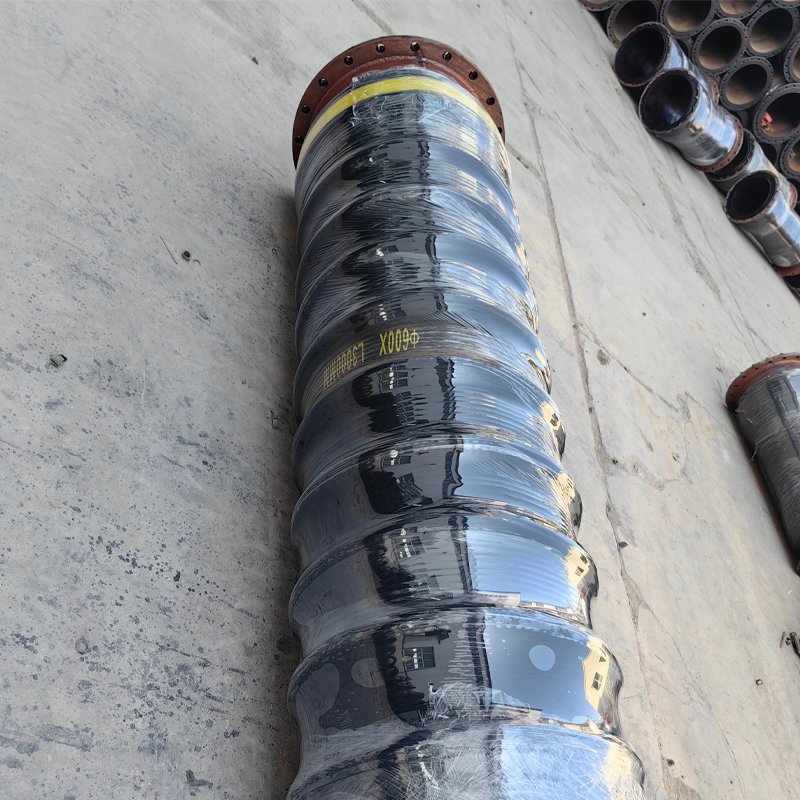

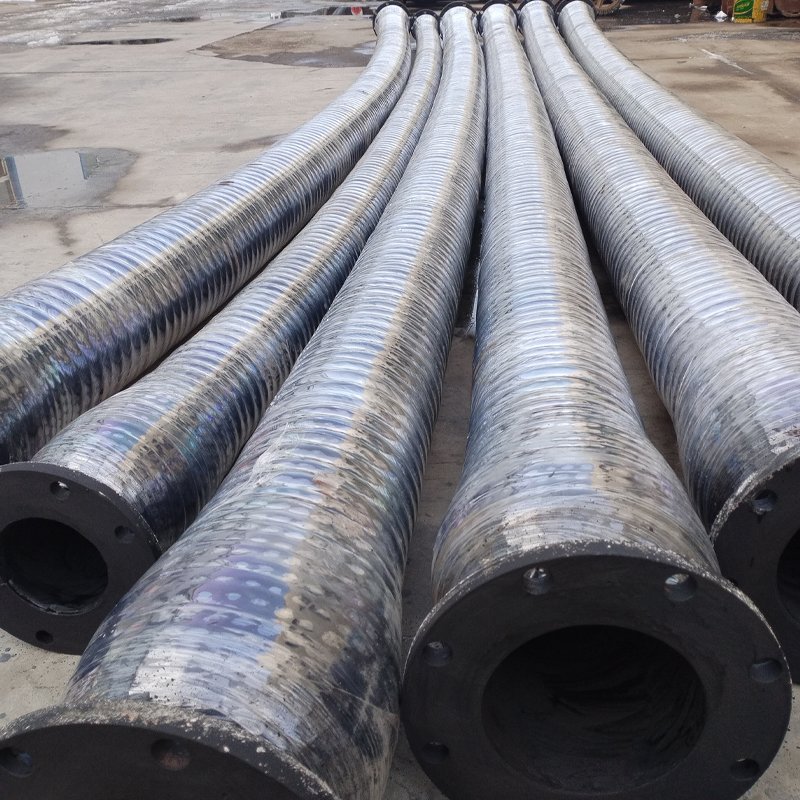

Rubber Suction Hose

Rubber Suction Hose is a highly flexible and durable tubing designed for extracting and transporting liquids, gases, or solids in various industrial, agricultural, and construction applications. Its robust construction and adaptability make it ideal for demanding environments, including dredging operations.

Structure

Layer: Black, wear and corrosion resistant mixing rubber building with HB400 wear rings
2.Reinforcement: High tensile textile layer and Steel rings
3.Cover: Black, weather and abrasion resistant rubber

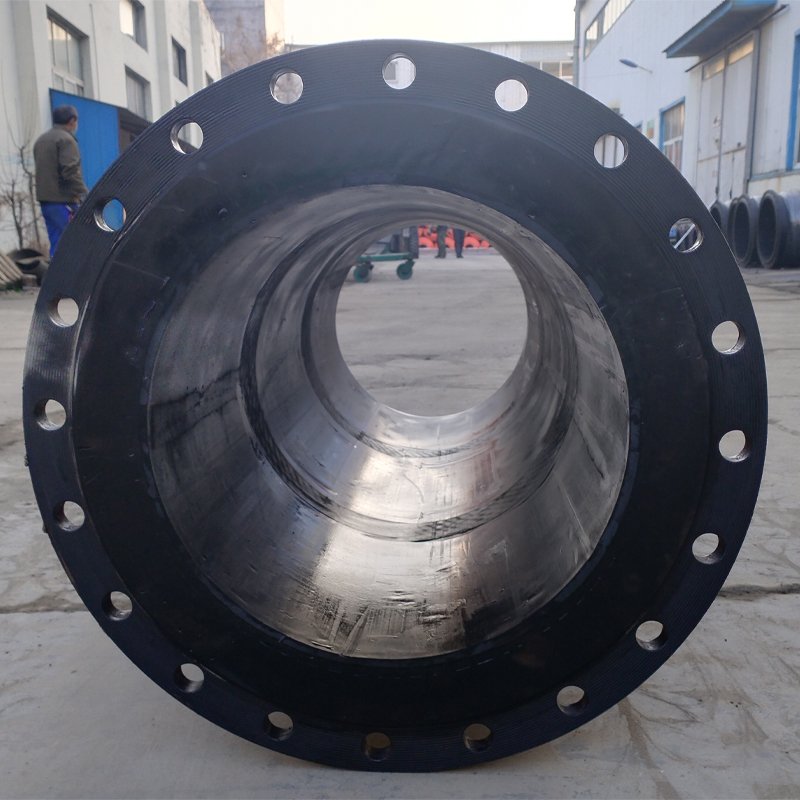

4.Flange: Stainless steel/Q235 material flanges in PN,JIS,ANSI,DIN,EN Standard .

Feature

1.Vacuum and Pressure Resistance: Capable of handling 100% vacuum and high implosion pressures, ensuring reliable performance under negative pressure conditions.
2.Temperature Range: Suitable for use in temperatures ranging from -30°C to +80°C, with some variants operating between -20°C and +50°C.
3.Wear and Flexing Resistance: Designed to withstand abrasion and repeated bending, making it durable for dynamic applications.
3.Customizable Sizes and Flanges: Available in inner diameters ranging from 100mm to 1200mm and can be fitted with various types of flanges to suit specific requirements.
4.Material Compatibility: Suitable for transporting petroleum-based products, diesel, gasoline, lubricants, and fuels with aromatic content up to 50%.

Advantage

Application

1.Dredging Operations: Used to transport slurry, silt, gravel, and other abrasive materials between dredgers and pumps. It operates under negative pressure to absorb mud and debris.
3.Industrial and Construction: Ideal for suction and discharge of petroleum-based products, diesel, gasoline, and other fluids with high aromatic content.
4.Agricultural and General Use: Suitable for extracting liquids, gases, or solids in various settings, thanks to its lightweight and flexible design. Rubber Suction Hose is a versatile and reliable solution for transporting abrasive and corrosive materials in challenging environments. Its advanced construction, customizable features, and resistance to wear, pressure, and temperature extremes make it an essential component in industries such as dredging, construction, and agriculture. Whether for standard or specialized applications, this hose delivers exceptional performance and durability.

Specification

ID		Pressure BAR		Length MM
MM	Inch	WP	BP	Length MM
150	6	10-35	30-105	11800
200	8	10-35	30-105	11800
250	10	10-35	30-105	11800
300	12	10-35	30-105	11800
350	14	10-35	30-105	11800
400	16	10-35	30-105	11800
450	18	10-35	30-105	11800
500	20	10-35	30-105	11800
600	24	10-35	30-105	11800
650	26	10-35	30-105	11800
700	28	10-35	30-105	11800
750	30	10-35	30-105	11800
800	32	10-35	30-105	11800
850	34	10-35	30-105	11800
900	36	10-35	30-105	11800
1000	40	10-35	30-105	11800
1100	44	10-35	30-105	11800
1200	48	10-35	30-105	11800
Note: Specifications, pressures, colors, and other parameters can be customized to meet the customer’s specific requirements.
