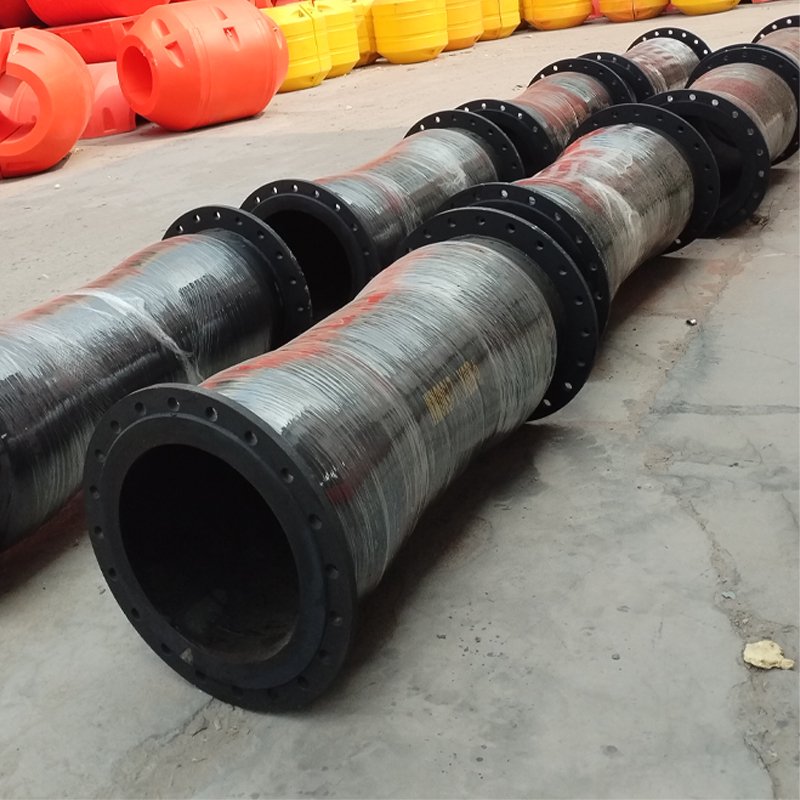

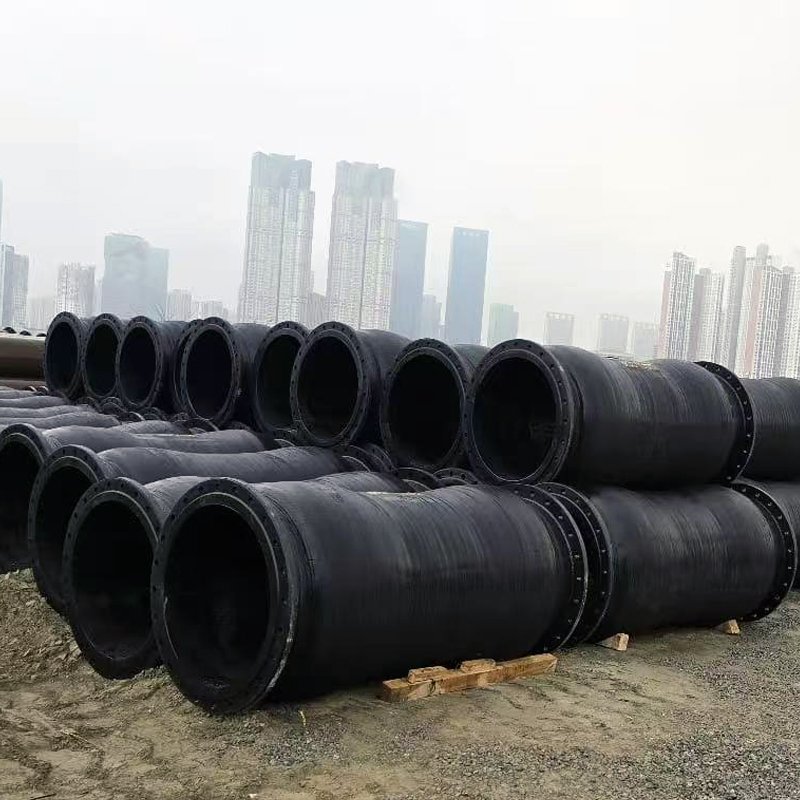

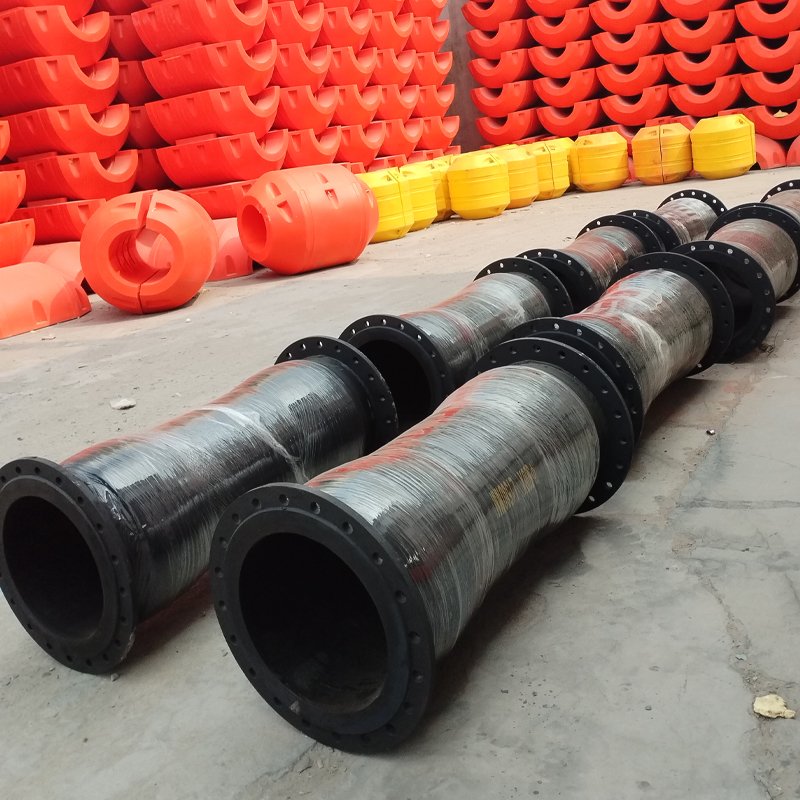

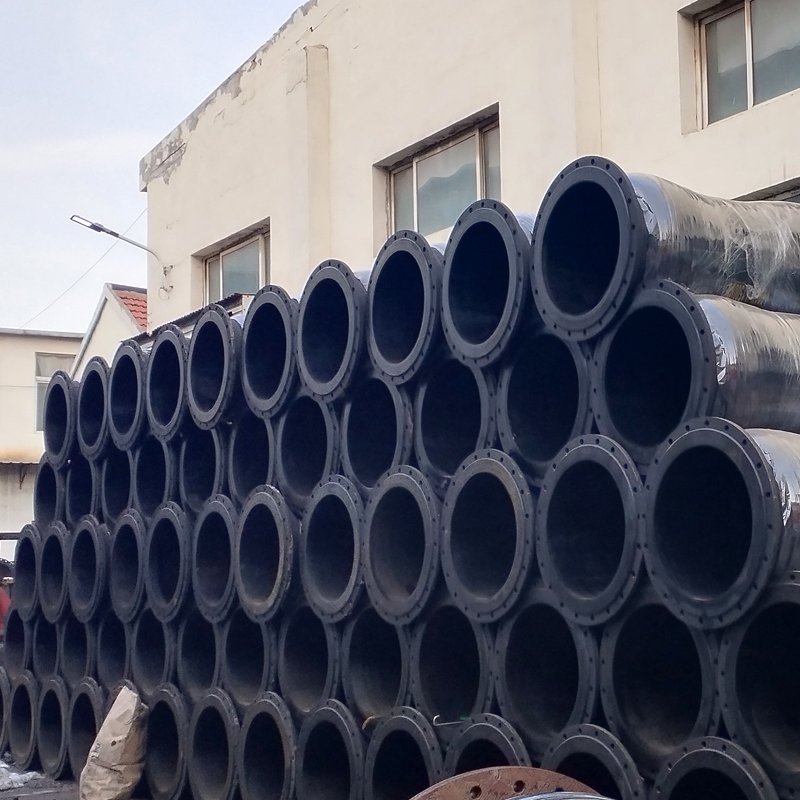

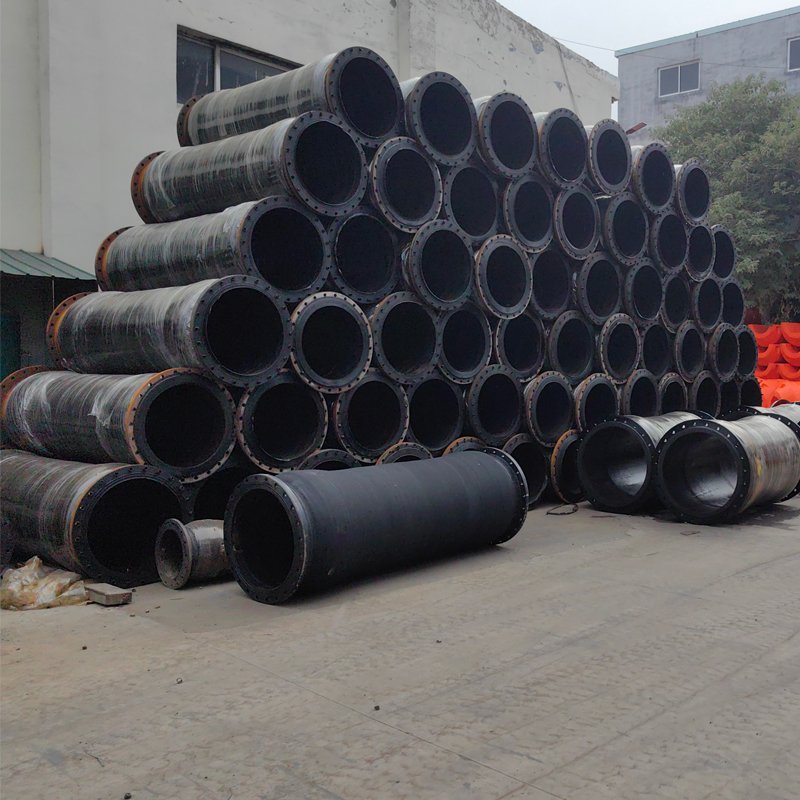

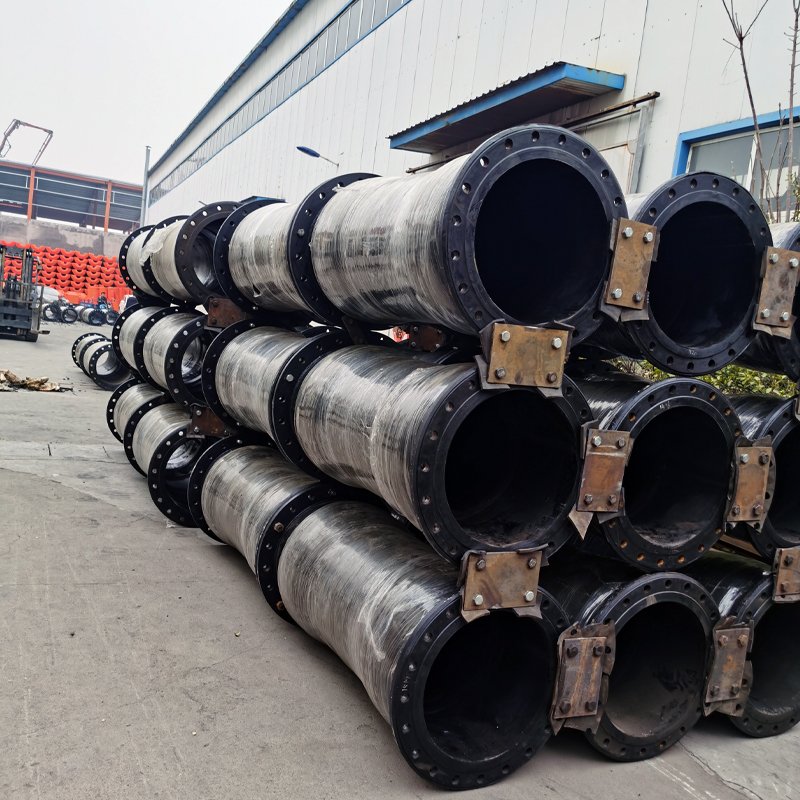

Dredging Discharge Hose

Structure

1.Inner Tube: Synthetic rubber NR& SBR.
2.Reinforcement: Polyester fabric cord reinforcement.
3.Outer Tube: EPDM (Ethylene Propylene Diene Monomer) & NR (Natural Rubber) & SBR (Styrene Butadiene Rubber).

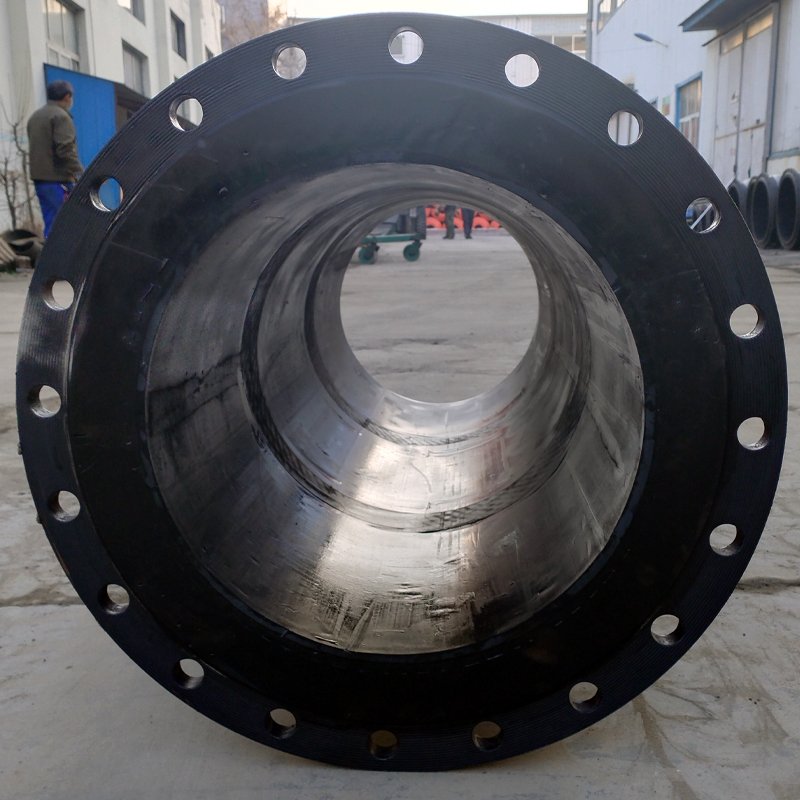

4.End Fitting: Stainless steel/Q235 material flanges in PN,JIS,ANSI,DIN,EN Standard.

Feature

1.Superior Durability:
Feature: Abrasion-resistant and bending-resistant design.
Benefit: Ensures long service life even when handling sharp, heavy, or abrasive materials.
2.Ease of Use:
Feature: Easy to install and highly flexible.
Benefit: Reduces setup time and adapts to various operational configurations.
3.Enhanced Safety:
Feature: Robust construction with high impact resistance.
Benefit: Provides reliable performance in demanding environments, minimizing risks of failure.
4.Exceptional Material Performance:
Feature: Excellent wear resistance, flexibility, and anti-scratch properties.
Benefit: Maintains optimal functionality under continuous use, reducing maintenance needs.
5.Wide Temperature Range:
Feature: Suitable for working temperatures from -20℃ to +50℃.
Benefit: Versatile for use in diverse climatic conditions, from cold to moderately hot environments.

Advantage

1.Ease of Installation: Simple and quick to set up, reducing downtime and labor costs.
2.Cost-Effective: More economical than traditional metal piping systems.
3.Lightweight Design: Easy to transport, install, and maintain.
4.Flexibility: Adapts to various configurations and terrains, ideal for dynamic work environments.
5.Durability: Strong yet flexible construction ensures superior performance in demanding industrial applications.

Application

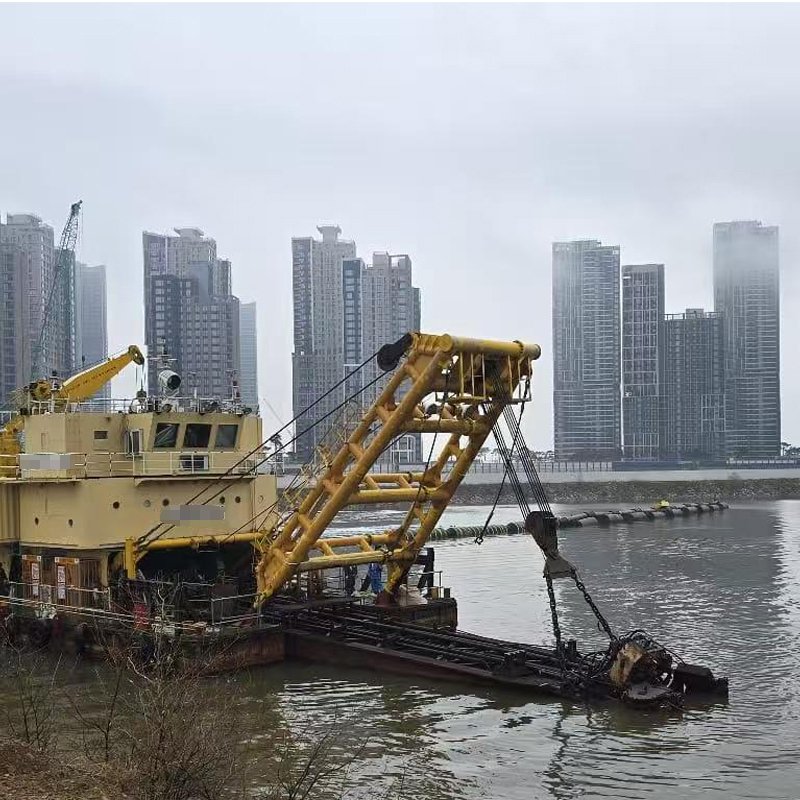

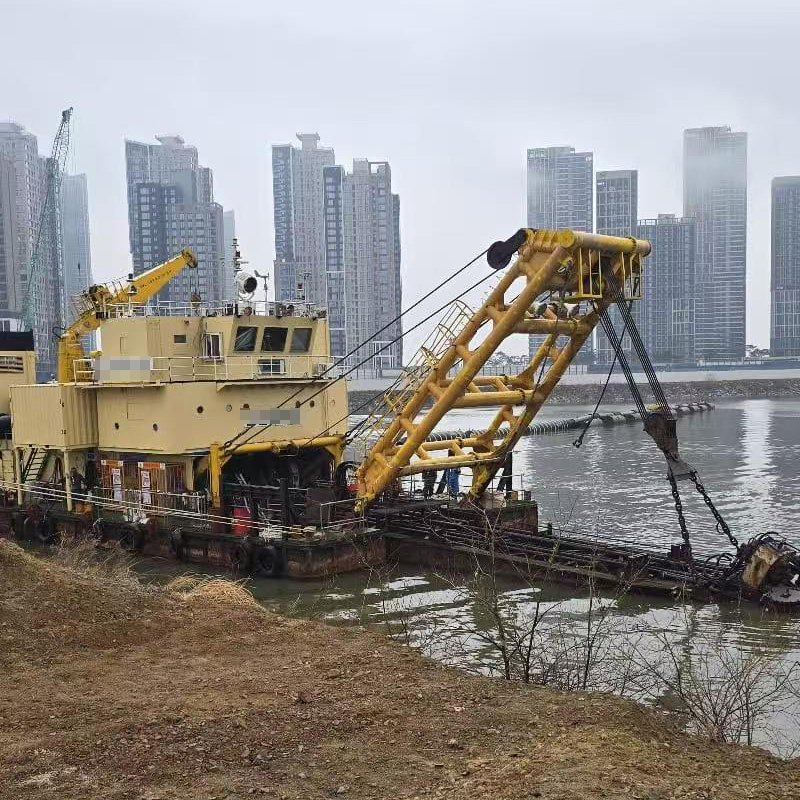

1.Dredging Operations: Transporting slurry, silt, sand, and other abrasive materials in ports, docks, and marine environments.
2.Building Projects: Handling floodwater, sediment, and construction waste.
3.Industrial Applications: Suitable for demanding environments requiring reliable material transport,such as the tailings desilting

Specification

ID		Pressure BAR		Length MM
MM	Inch	WP	BP	Length MM
150	6	10-35	30-105	11800
200	8	10-35	30-105	11800
250	10	10-35	30-105	11800
300	12	10-35	30-105	11800
350	14	10-35	30-105	11800
400	16	10-35	30-105	11800
450	18	10-35	30-105	11800
500	20	10-35	30-105	11800
600	24	10-35	30-105	11800
650	26	10-35	30-105	11800
700	28	10-35	30-105	11800
750	30	10-35	30-105	11800
800	32	10-35	30-105	11800
850	34	10-35	30-105	11800
900	36	10-35	30-105	11800
1000	40	10-35	30-105	11800
1100	44	10-35	30-105	11800
1200	48	10-35	30-105	11800
Note: Specifications, pressures, colors, and other parameters can be customized to meet the customer’s specific requirements.
