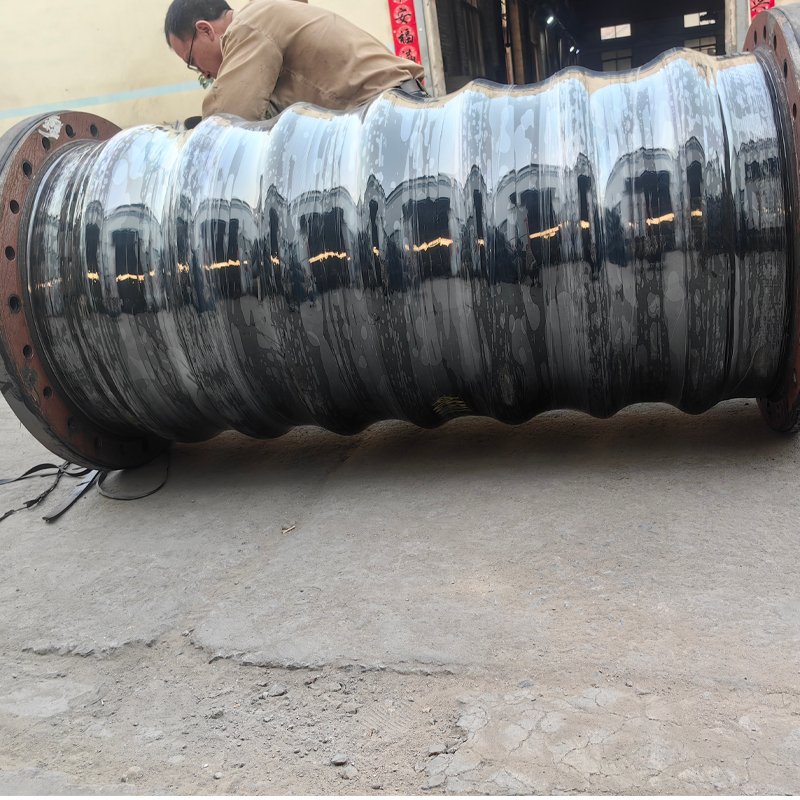

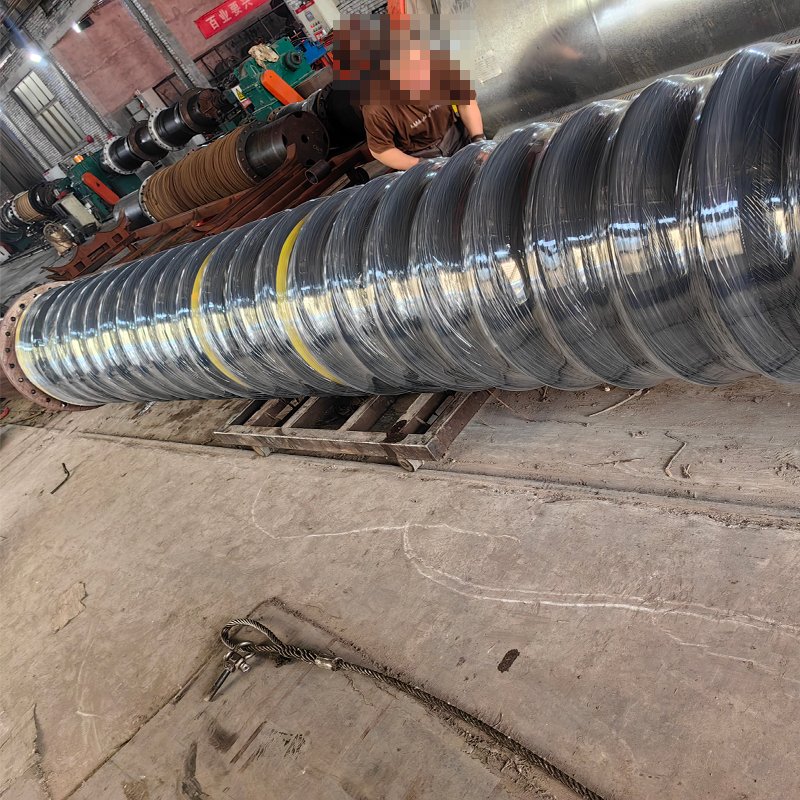

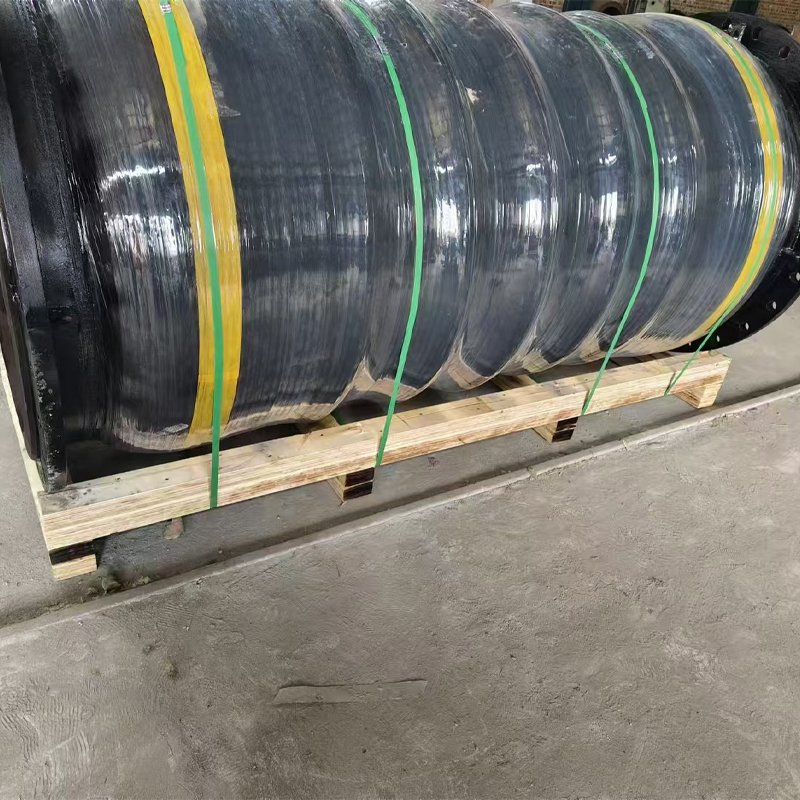

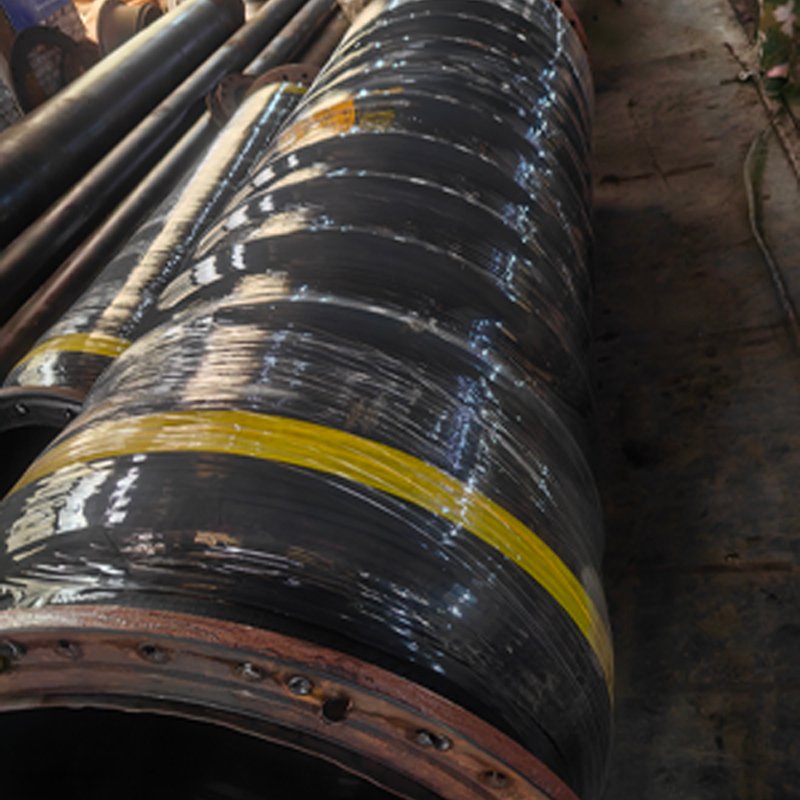

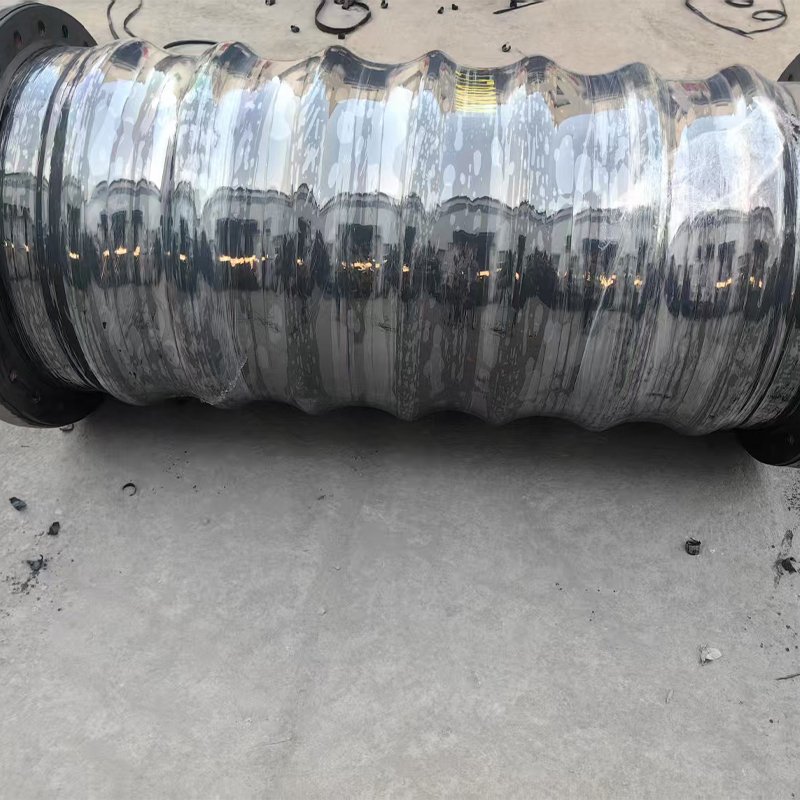

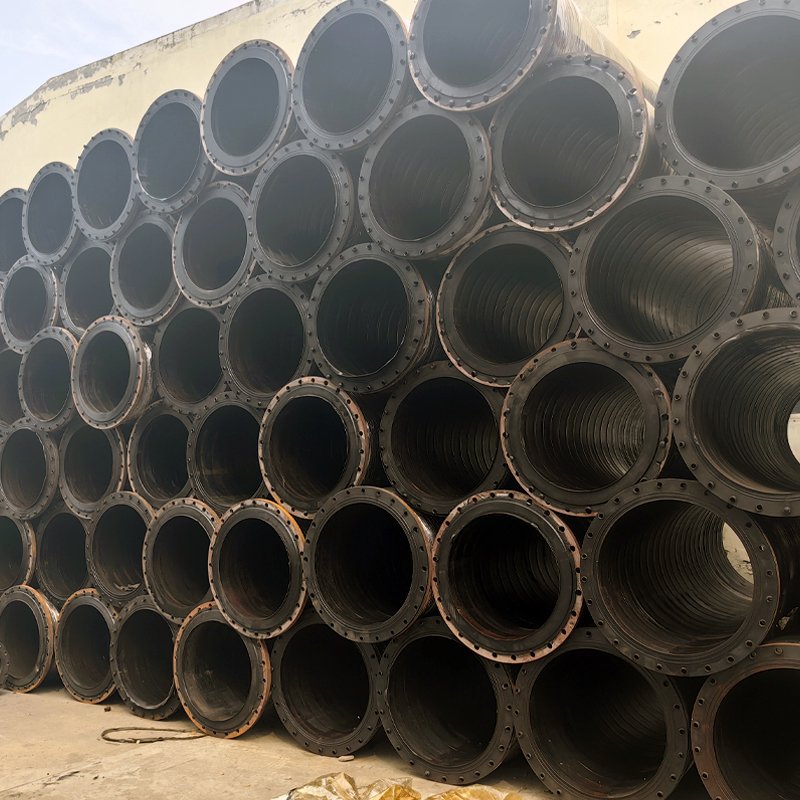

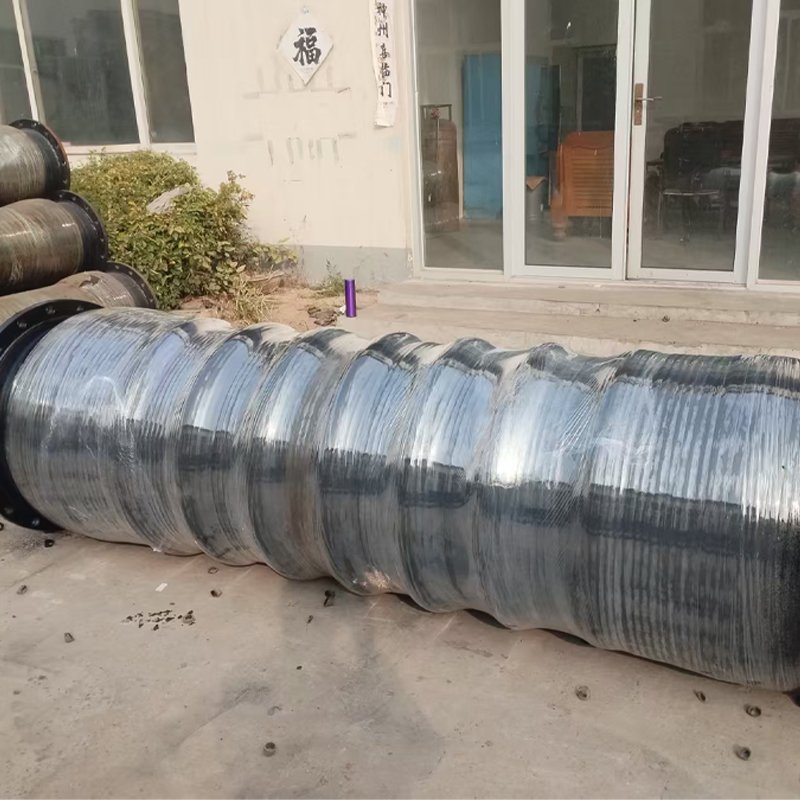

Armoured Suction Hose

Armoured Suction Hose is specifically designed for handling highly abrasive materials and operating in environments with sharp-edged and coarse solids. Its robust construction and advanced manufacturing techniques make it ideal for demanding applications such as dredging and submarine mining.

Structure

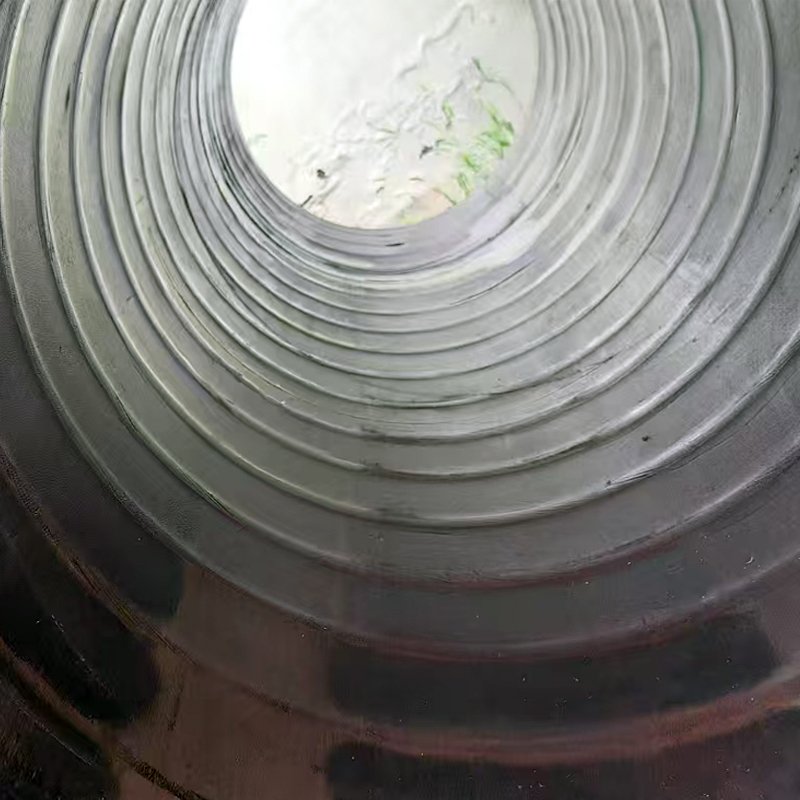

1.Inner Layer: Black, wear and corrosion resistant mixing rubber building with HB400 wear rings
2.Reinforcement: High tensile textile layer and Steel rings
3.Cover: Black, weather and abrasion resistant rubber
4.Flange: Stainless steel/Q235 material flanges in PN,JIS,ANSI,DIN,EN Standard .

Feature

1.Wear Resistance: Manufactured using casting and sintering technology, the hose features wear rings with an optimized cross-section and extremely high hardness, ensuring exceptional durability.
2.Flexing Resistance: Maintains excellent performance even under constant bending and flexing, making it suitable for dynamic operations.
3.Versatile Designs: Available in various configurations, including ring type (outside smooth), helix type, and other custom designs to meet specific operational requirements.
4.Steel Flange Integration: Equipped with steel flanges for secure connections, making it compatible with dredging equipment such as drag heads, sand pumps, and underwater pumps.

Advantage

Application

Armoured Suction Hose is widely used in the following scenarios:
1.Dredging Operations: Transports abrasive materials such as sharp gravel, coral reefs, and other coarse solids during dredging activities.
2.Deep Water and Submarine Mining: Suitable for deep-water dredging and underwater mining applications, where durability and reliability are critical.
3.Pump Connections: Used to connect underwater pumps and inboard pumps on dredgers, ensuring efficient material transfer.

Armoured Suction Hose is an essential component in industries requiring the handling of abrasive and coarse materials. Its advanced wear-resistant technology, flexibility, and customizable designs make it a reliable solution for challenging environments, including dredging and mining operations. Whether for standard or specialized applications, this hose delivers superior performance and longevity, ensuring efficient and uninterrupted operations.

Specification

ID		Pressure BAR		Length MM
MM	Inch	WP	BP	Length MM
150	6	10-35	30-105	11800
200	8	10-35	30-105	11800
250	10	10-35	30-105	11800
300	12	10-35	30-105	11800
350	14	10-35	30-105	11800
400	16	10-35	30-105	11800
450	18	10-35	30-105	11800
500	20	10-35	30-105	11800
600	24	10-35	30-105	11800
650	26	10-35	30-105	11800
700	28	10-35	30-105	11800
750	30	10-35	30-105	11800
800	32	10-35	30-105	11800
850	34	10-35	30-105	11800
900	36	10-35	30-105	11800
1000	40	10-35	30-105	11800
1100	44	10-35	30-105	11800
1200	48	10-35	30-105	11800
Note: Specifications, pressures, colors, and other parameters can be customized to meet the customer’s specific requirements.
