Structure and Material

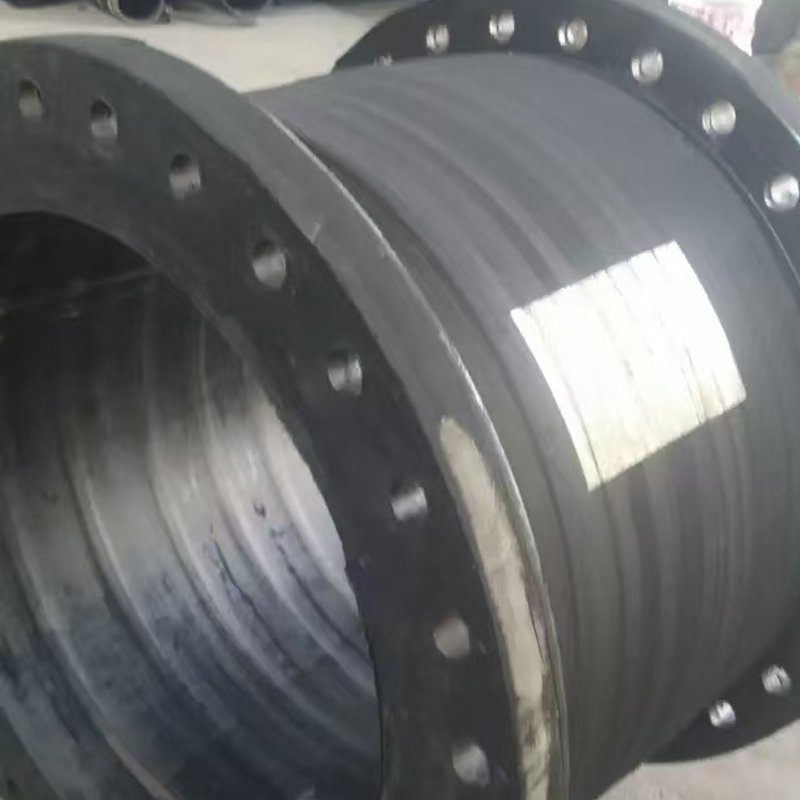

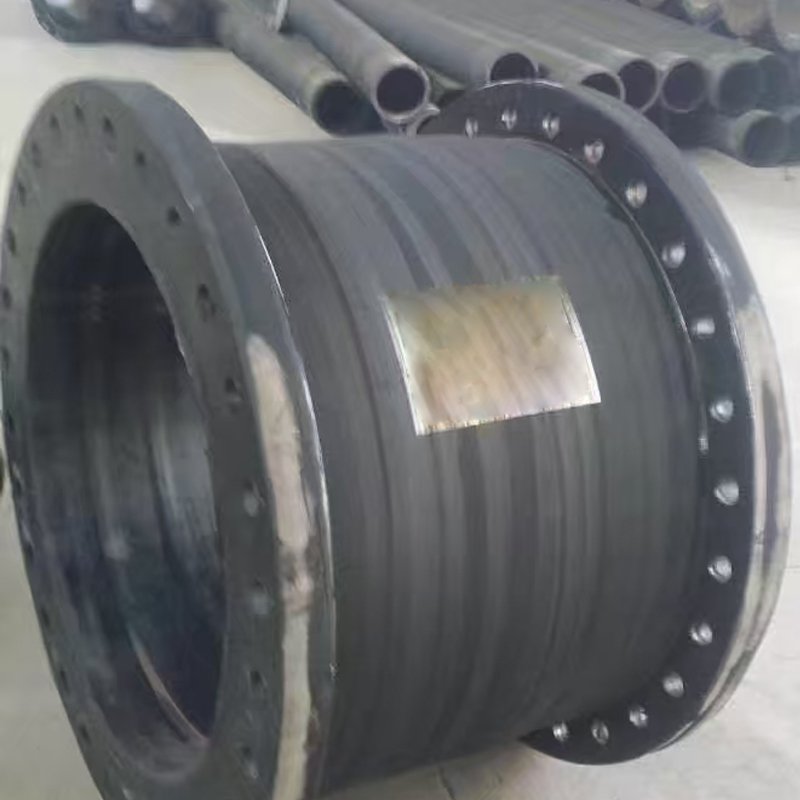

An Armored Expansion Joint is a robust and durable component designed for demanding industrial applications. It is composed of the following key elements:
·Lining: Provides internal protection and ensures smooth fluid flow.

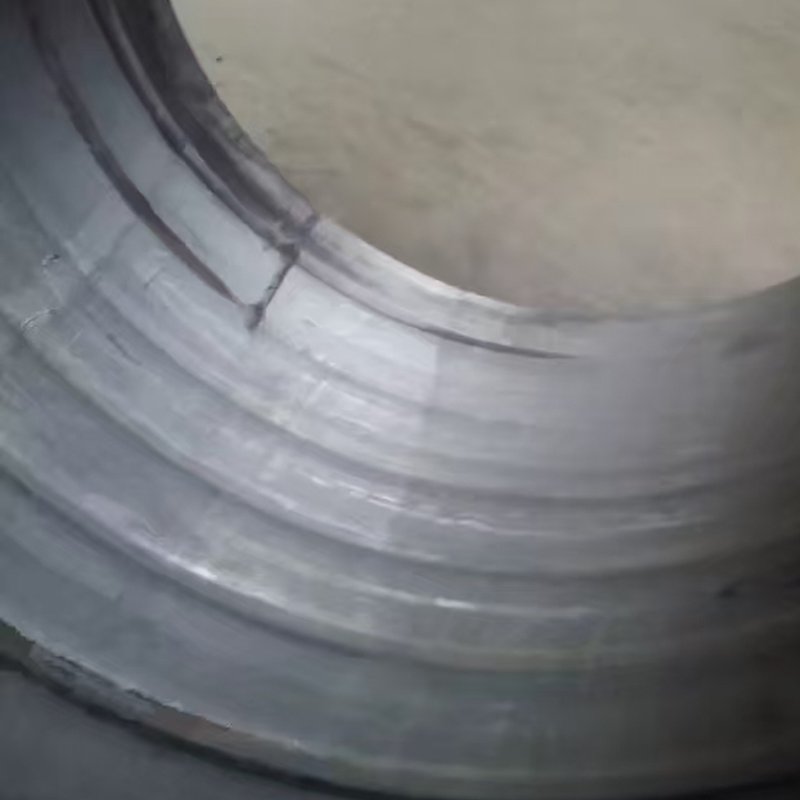

·Wear-Resistant Steel Rings: Embedded using advanced technology to enhance durability.
·Reinforcing Plies: Add strength and flexibility to the joint.
·Outer Cover: Protects the joint from external environmental factors.

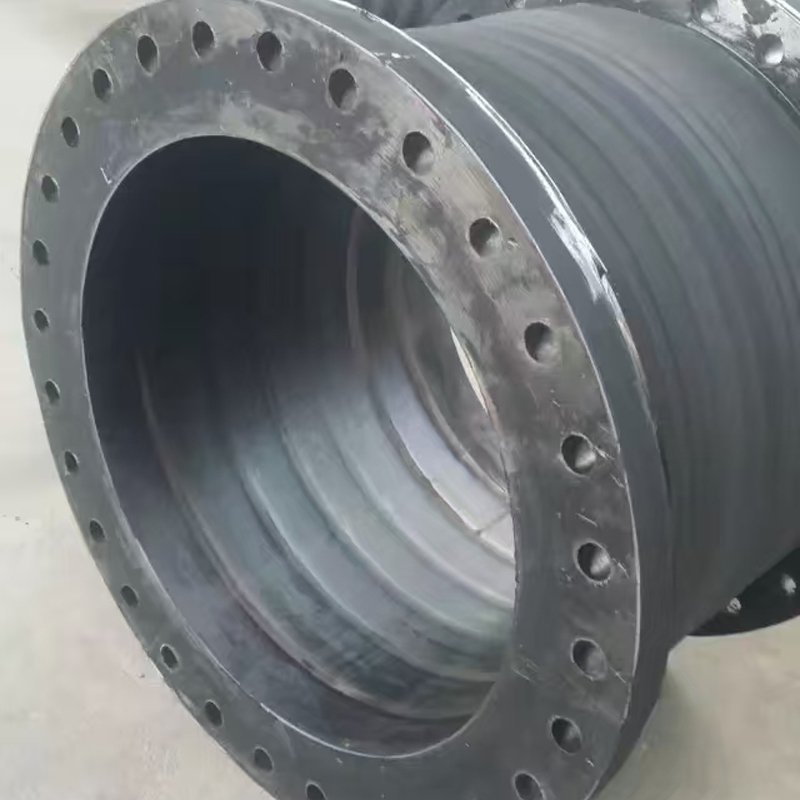

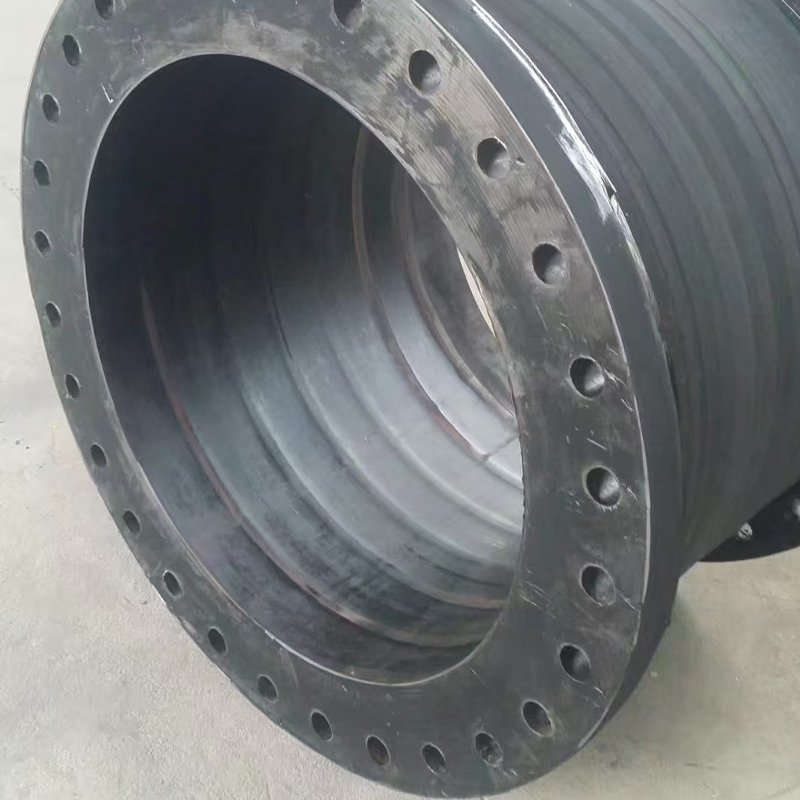

·Flanges: Located at both ends for secure installation and connection.
1.Wear-Resistant Ring Embedding Technology: Ensures exceptional wear and impact resistance, making it ideal for harsh operating conditions.
2.Shock Absorption and Elasticity: Provides excellent vibration damping, reducing stress on connected equipment and pipelines.
3.Sealing Property: Maintains a reliable seal, preventing leaks and ensuring system integrity.
4.Customizable Length and Design: Can be tailored to meet specific requirements, including special types such as reducing bore, offset, and elbow configurations.
Armored Expansion Joints are primarily used in dredging pipelines, where they are installed between pumps and pipeline connectors. Their key applications include:
Shock Absorption: Reduces vibration and noise, protecting equipment and improving operational efficiency.
Sealing and Expansion Compensation: Accommodates thermal expansion, contraction, and other movements in the pipeline.
Adaptability: Suitable for various pipeline configurations, with lengths and specifications customizable to customer needs.
Installation and Customization
The joints are directly assembled and butt-jointed, featuring a super-durable metal working surface for enhanced performance. Specifications can be designed according to customer requirements, ensuring optimal compatibility with specific systems.
Armored Expansion Joints are essential components in industrial pipelines, particularly in dredging applications. Their advanced structure, wear-resistant features, and customizable designs make them highly effective in reducing vibration, noise, and wear while ensuring reliable sealing and flexibility. Whether for standard or specialized applications, Armored Expansion Joints provide durable and efficient solutions tailored to meet the demands of challenging environments.
| (1)Nominal Bore Size | 500mm,600mm,700mm,750mm,800mm,850mm,900mm,1000mm,1100mm,1200mm |
| (2)Hose Length | 0.3 m ~1 m (tolerance:±1% ) |
| (3)Working Pressure | up to 2.5 MPa |
| (4)Tolerable Vacuum | -0.08 MPa |
| Note: Specifications, pressures, colors, and other parameters can be customized to meet the customer’s specific requirements. | |
